PAYLOADS FOR THERMAL IMAGING
When equipped with a thermal camera system, our craft can collect data that translates thermal energy (heat) into visible light in order to analyse a particular object or scene. Thermal imagery data has been instrumental in industries such as Asset Inspection, Surveying and Search & Rescue amongst others.
DJI Matrice 30T
The DJI Matrice 30T is DJI Enterprise's flagship drone that fits in a backpack. It integrates multiple high-performance sensors into one single camera payload, is controlled with an ingenious redesigned remote control and runs on upgraded Pilot 2 software, which significantly improves the flight experience. The M30T model offers much more power, endurance and capability for rugged professional uses, while its size makes it ideal for easy transportation and fast setup.
The M30T integrates a 640x512 px radiometric thermal camera, a 48 megapixel 1/2'' CMOS sensor zoom camera with 5×~16× optical and 200× digital zoom, a 12 megapixel wide-angle camera, 8k photo 4K/30 fps video resolution, and a laser rangefinder which can give the precise coordinates of objects up to 1,200 meters away.
DJI Mavic 2 Enterprise Advanced
Capture accurate details in any mission with the Mavic 2 Enterprise Advanced – a highly versatile yet compact tool that packs a whole lot of performance upgrades. With high-resolution thermal and visual cameras, the M2EA supports up to 32× digital zoom and is capable of centimeter-level positioning accuracy with the RTK module.
Make informed decisions by quickly identifying objects onsite using the M2EA’s integrated high-resolution thermal sensor, which supports Spot Meter and Area Measurement.
Key Features:
Flight Time: 31 Min
Thermal Camera: Resolution - 640 x 512, Frame Rate - 30 Hz, Zoom - 16x
Visual Camera: Resolution - 48 MP, CMOS Sensor - 1/2”, Digital Zoom - 32x
DJI ZENMUSE H20 SERIES (Compatible with Matrice 300 RTK)
The H20T is a four-sensor unit with a 20MP, 23x Hybrid Optical Zoom Camera, a 12MP Wide Camera, a Laser Range Finder that covers distances from 3–1200 meters (3–1312 yards) as well as a Radiometric Thermal Camera (640 x 512 pixels). This high resolution thermal camera allows operators to see what is invisible to the human eye. The H20T also comes in a H20 model without the high resolution thermal camera.

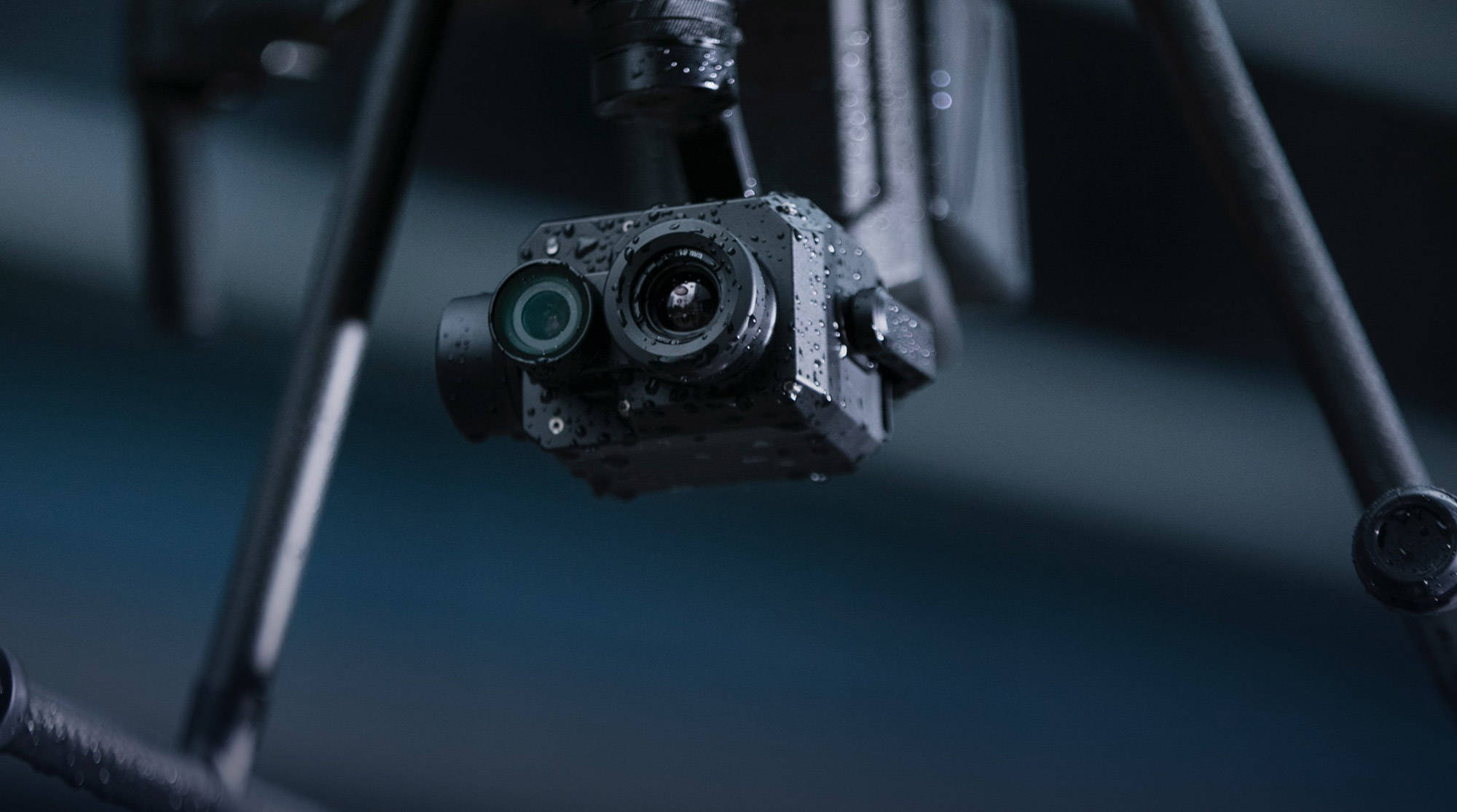

DJI ZENMUSE XT2
Combining FLIR's advanced radiometric thermal sensor and a 4K visual sensor this thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. Available in a variety of focal lengths from 9mm-19mm.
The DJI Zenmuse XT2 is compatible with the DJI M200 Series, M200 Series V2, M600 Pro and Matrice 300 RTK.
FLIR Vue TZ20-R
Made in the USA, the radiometric VUE TZ20-R thermal-zoom drone payload enables DJI V2 Matrice 200 series and 300 pilots to see and measure thermal details not possible with other leading sUAS aircraft and payloads. The TZ20-R features two FLIR Boson® thermal cameras that put four times more pixels on target at every zoom level versus all competition and offers an unmatched 20× zoom capability. Utility, roofing, solar farm, and other industrial inspectors can zoom into objects of interest, identify them with unmatched clarity, and take and record radiometric temperature measurements, all from a safe standoff distance. Emergency response pilots in search and rescue, law enforcement, firefighting, and public safety can search for and observe in silence while using the thermal zoom to reduce false positives and make critical decisions faster with the affordable VUE TZ20-R. The combination of performance-leading thermal zoom and radiometry enables more efficient missions with faster search, silent surveillance, and safer stand-off inspections.
