PAYLOADS FOR image data capture
Powerful integrated zoom cameras have enabled drone operators to generate a whole new level of detail from aerial imaging. Now able to capture the information they require from a greater range, aerial data collection has become significantly faster, effective and safer for operators.

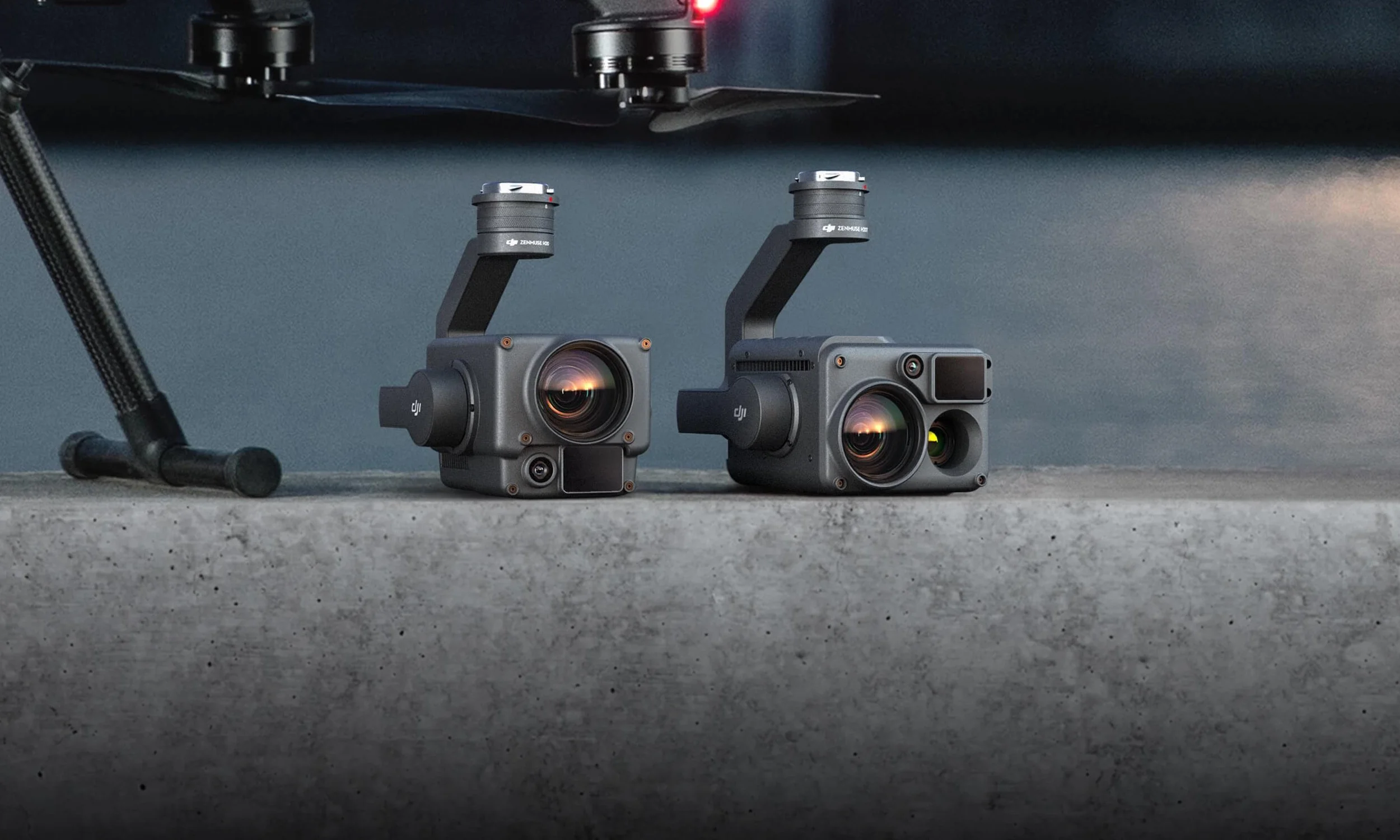

DJI ZENMUSE H20 SERIES

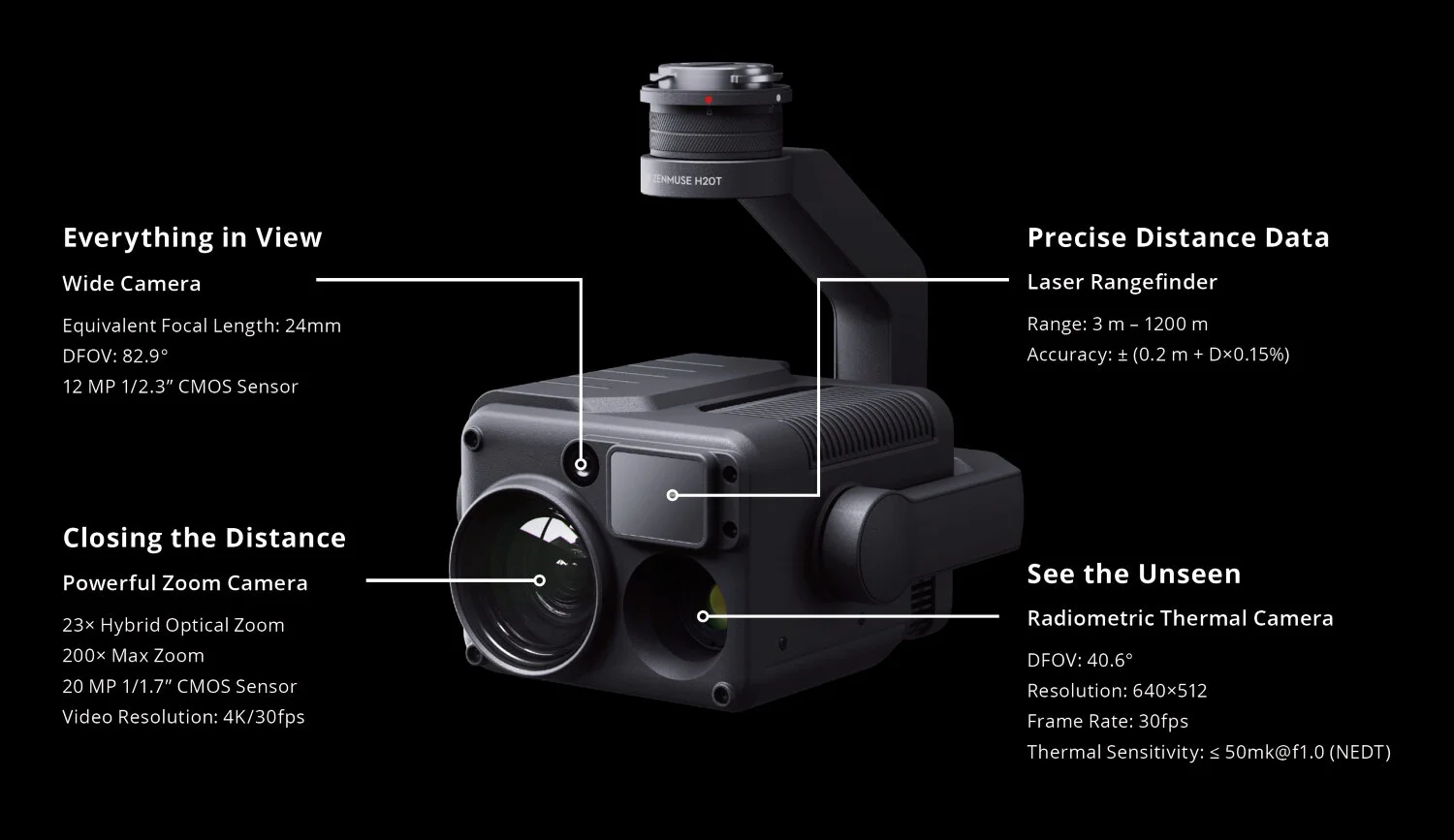

The H20 series comes in two versions: the H20 and the H20T. The H20 is a triple-sensor unit with a 20MP, 23x Hybrid Optical Zoom Camera, a 12MP Wide Camera and a Laser Range Finder that covers distances from 3–1200 meters (3–1312 yards). The H20T, on the other hand, adds an additional Radiometric Thermal Camera (640 x 512 pixels), that ‘allows operators to see what is invisible to the human eye.
The Zenmuse H20 series is compatible with the Matrice 300 RTK. Both the M300 RTK and Zenmuse H20 series payloads are available to pre-order from Ferntech.
View example high resolution grid photos our team have taken on the H20 series here.
Phase One P3 for DJI M300 - 100MP camera
The Phase One P3 Payload is an integrated plug-and-play solution for the DJI M300 drone. It is designed to maximize the productivity of the most demanding inspection projects where time, safety, and image details are paramount for success. The P3 Payload for DJI M300 leverages the DJI ecosystem for mission planning and execution to provide a flexible solution with the highest quality imagery. The P3 increases your inspection productivity through its ease of installation, superior data output, and uncompromised image details. Equipped with a medium format Phase One iXM 100mp camera and a sensor that is 1.7 times larger than other cameras, it captures more details in each frame. In addition, iXM cameras boast the highest dynamic range and have a variety of lens options ranging from 35mm to 150mm, the latter being the longest option available for small UAVs. Boost your inspection mission productivity, speed, and efficiency with the P3 Payload.
